Portable Turntable

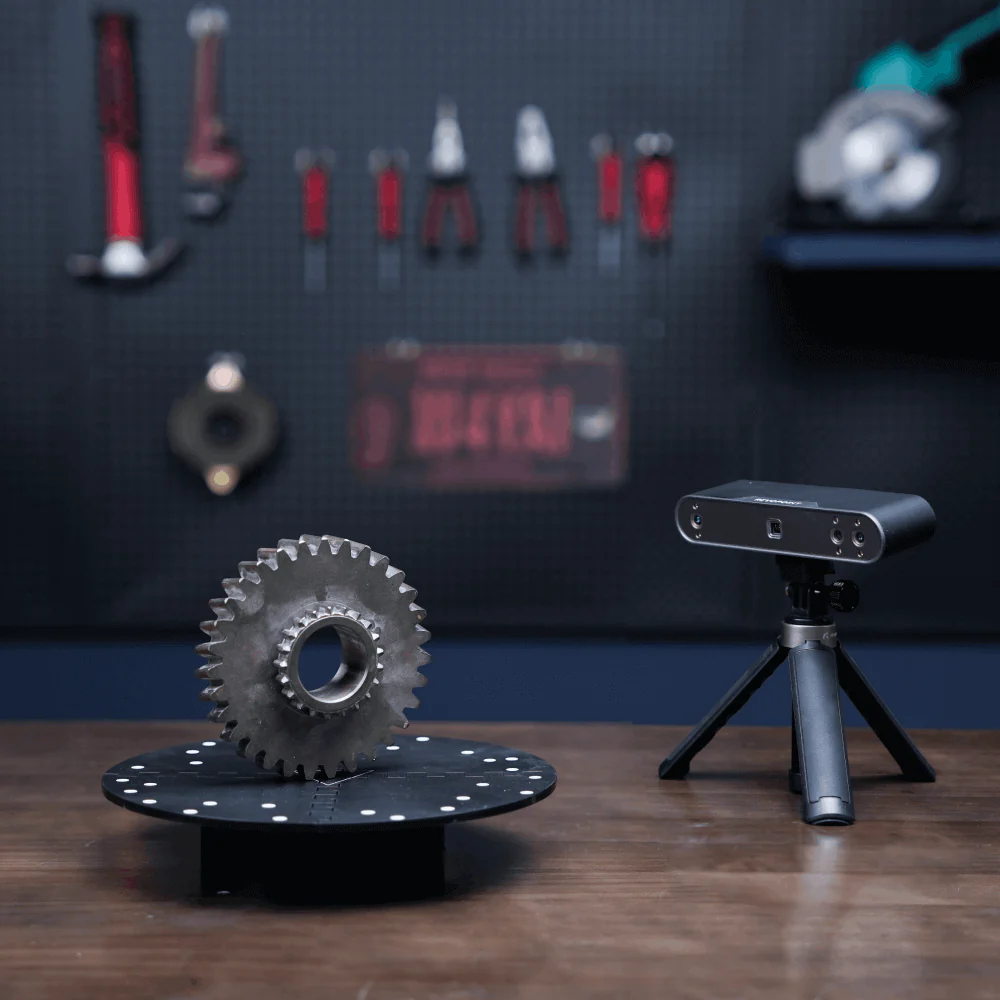

With adjustable speed and direction, the Portable Turntable makes scanning medium to small objects much easier by enabling you to keep your 3D scanner in a fixed position when scanning. Compact and portable, it also comes with anextended table that can be separated into pieces for easier transportation.

Product Name	Portable Turntable
Compatible Devices	POP, POP 2, MINI
Product Material	ABS
Color	Black
Max Speed	2 RPM (Revolutions Per Minute)
Dimensions	(D) 120mm × (L) 38mm
Power Supply	USB Power Supply
Function	Motorized 360° Rotation
Weight	315g
Max Load	2.5kg
Certification	ROHS, PSE, CE, FCC

Features

1. Lightweight and easy to carry.
2. It can be disassembled for easy transportation.
3. Good 3D scanning aid, especially for beginners.

Connection of the Turntable

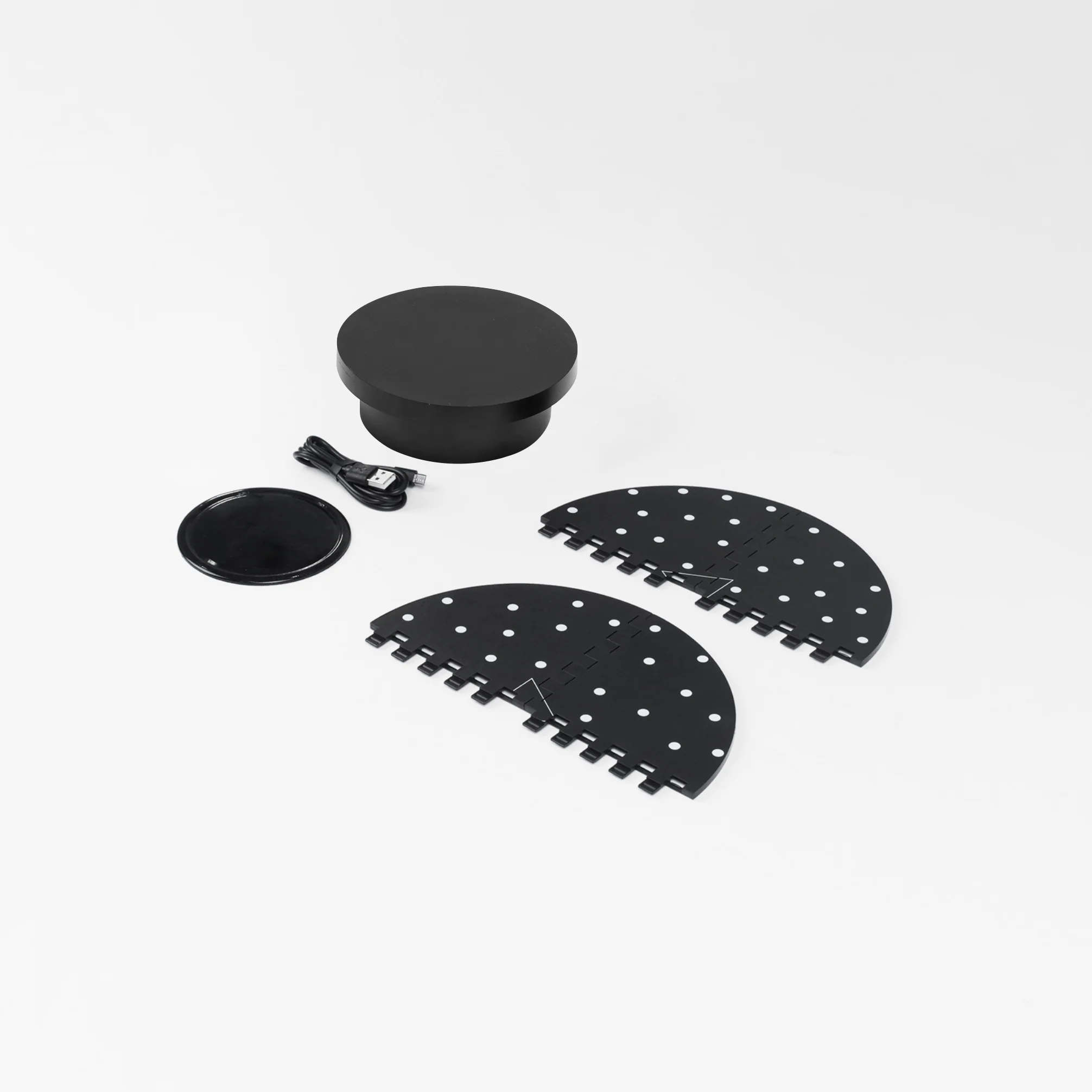

Part List: 4 pieces of extended table, USB cable, reusable sticky pad, and the mini turntable.



Plug in the mini turntable with the USB cable.

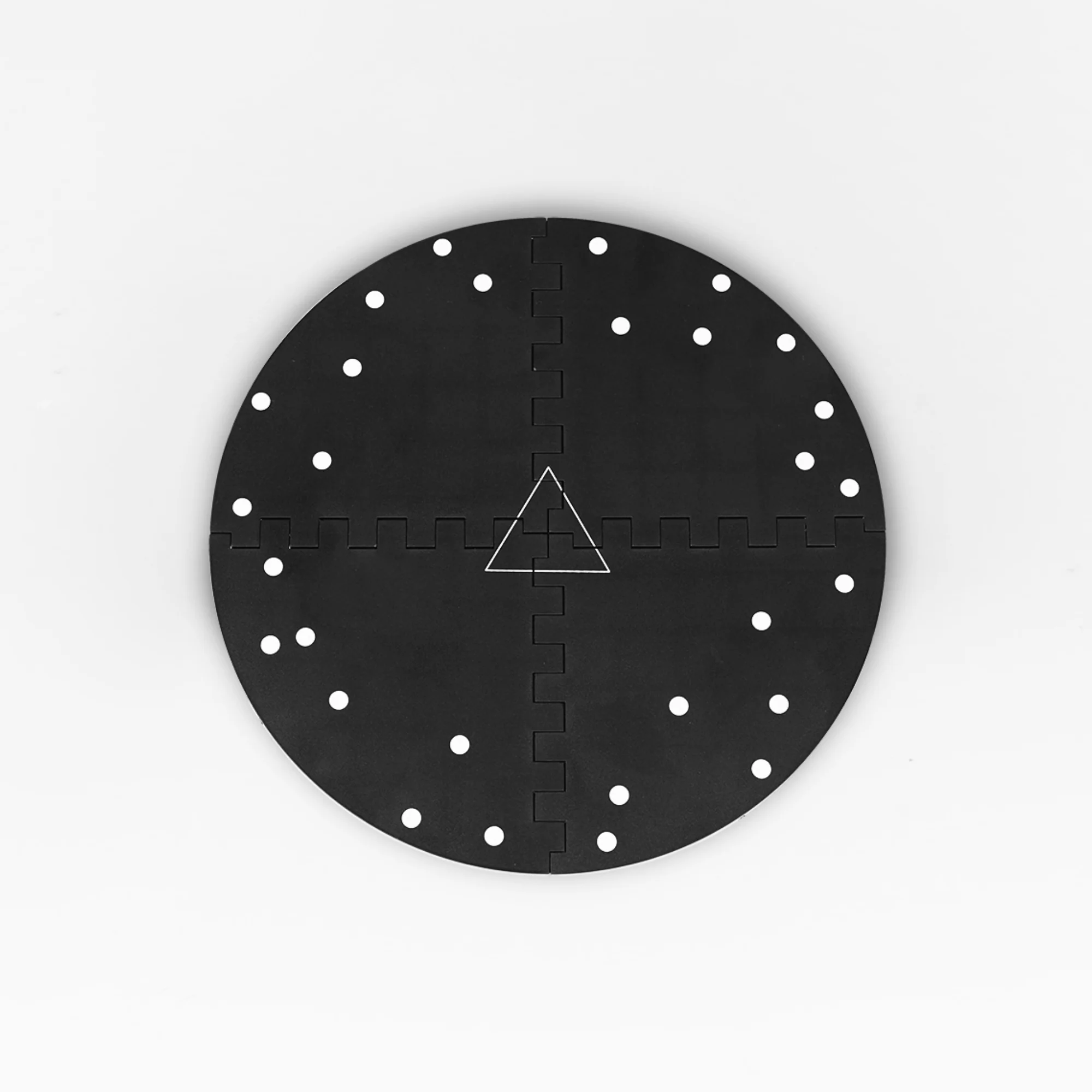

Use the guiding lines of the triangle in the middle of the table to match and interlock two of the quarters together, and then do the same for the other two quarters, then interlock both halves together to make the complete table.

Stick the reusable sticky pad on the mini turntable.

Then put the extended table on the sticky pad.
